Extension Entry

Defines the API of an Extension.

Use this action to define a block of reusable business logic that you want to execute from multiple places within your Flow.

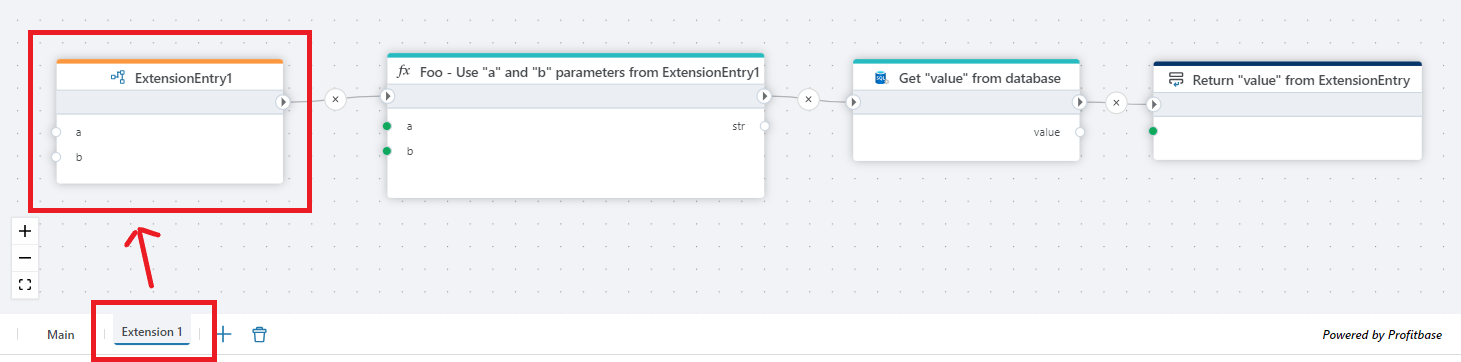

The Extension Entry action can only be added to an Extension flowchart. It defines the entry point of the Extension, and must be the first action of the Extension flowchart.

You can define any number of parameters, and optionally a return type.

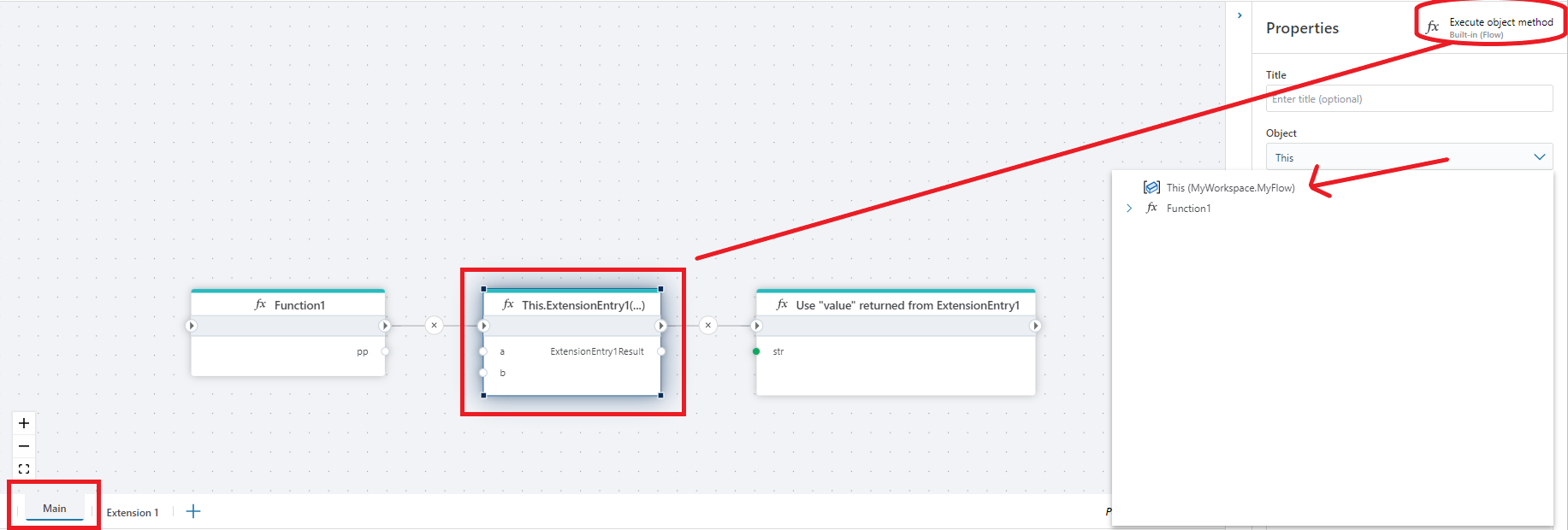

To call the Extension Entry action from another flowchart, use the Execute object action and select the This globally available variable as the object. Then select the name of the Extension entry as the method, and specify arguments to the parameters (if any).

Properties

Name	Type	Description
Name	Optional	The name of the flowchart entry point.
Is upgradable	Optional	Indicates whether this entry can be upgraded.
Custom data types	Required	Allows defining custom data types for the flowchart.
Custom code	Optional	Allows adding custom code to extend functionality.
Description	Optional	Provides additional information about this flowchart entry.
