Streaming chat completion

This action defines an OpenAI streaming chat completion model that processes a prompt and delivers the response in small pieces as it is generated. Using a streaming chat completion improves responsiveness and gives the user real-time insight into the model’s output as it forms.

It's typically used when building backends for interactive chat clients, assistant-like experiences, or any UI that needs incremental model output.
Unlike the standard chat completion, this action returns the response incrementally as it is generated.

Openai Streaming Chat Completion

Example Example

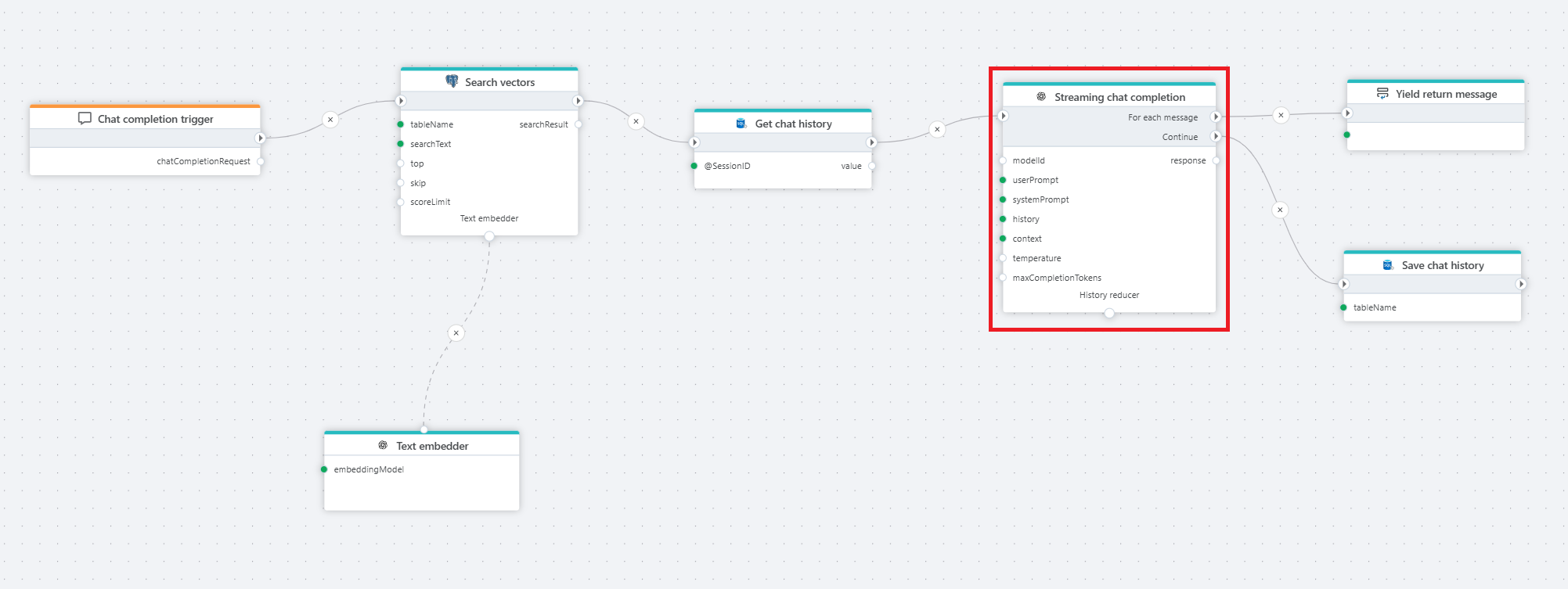

The example above shows a Flow that provides chat completions to a chat client. We're using PostgreSQL vector search to enable RAG, and SQL Server to store and retrieve the chat history so that users can ask follow-up questions.


Properties

Name Required Description
Title No The title of the action.
Connection Yes Defines the connection to OpenAI.
Model id Yes ID of the chosen model.
System prompt No A system-level instruction that guides the model’s behavior and response style.
User prompt Yes The input message from the user, which the model processes to generate a response.
History No A record of past interactions that provides context to the conversation, helping the model maintain continuity.
Context No Additional context information to influence the response (if supported).
Prompt template No Defines the structure of the prompt sent to the model. The system replaces the placeholders @@context and @@userPrompt with the relevant information. See example below.
Temperature No Controls randomness/creativity of responses. Lower = more focused; higher = more creative. Default: 0.7.
Max completion tokens No Sets a limit on the number of tokens in the model’s response.
Result variable name No Stores the generated AI response. Default: response.
Enable Grounding No Enables web search to improve factual reliability by using external or structured context sources.
Disabled No If enabled, the action will be skipped during flow execution.
Description No Additional details or notes regarding the chat completion setup.

Prompt template

The prompt template allows you to specify the format of the prompt that is sent to the language model. This is useful for customizing how context and instructions are provided to the model. Within the template, you can use the following placeholders:

  • @@context: This is replaced by the "Context" property value.
  • @@userPrompt: This is replaced by the "User prompt" property value.

The system will substitute these placeholders with the corresponding values before sending the prompt to the model.

Example Example

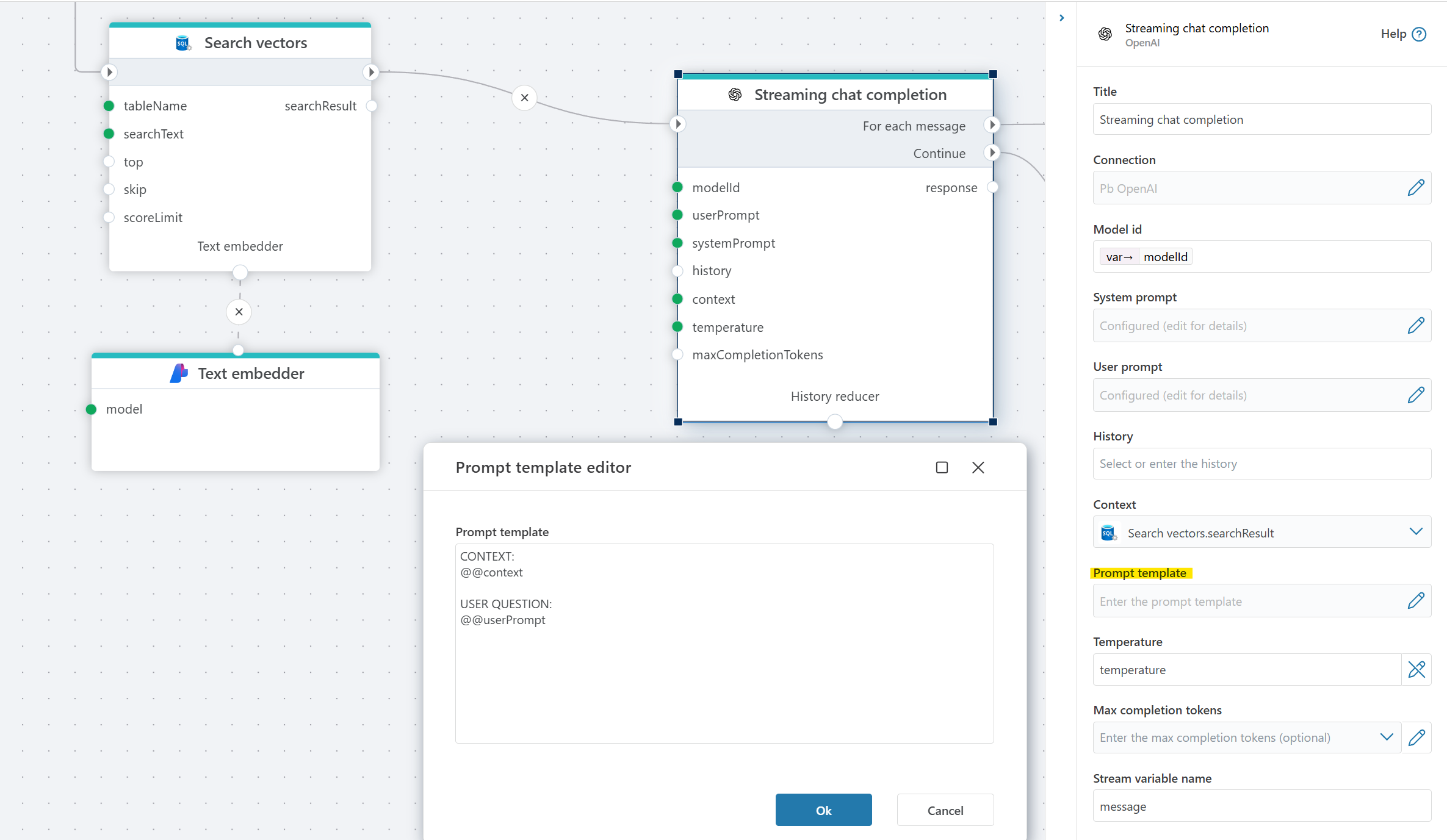

Openai Streaming Chat Completion Prompt Template
