Extract content from PDF as byte array

Extracts content from a PDF file and returns it as byte array. The input is provided as a stream or byte array (typically via a file read block). This action uses Adobe PDF Services to extract textual and structural content from PDF documents.

Note

If you want to programatically query the document structure of a PDF document, consider using the Extract content from PDF as document tree action instead.

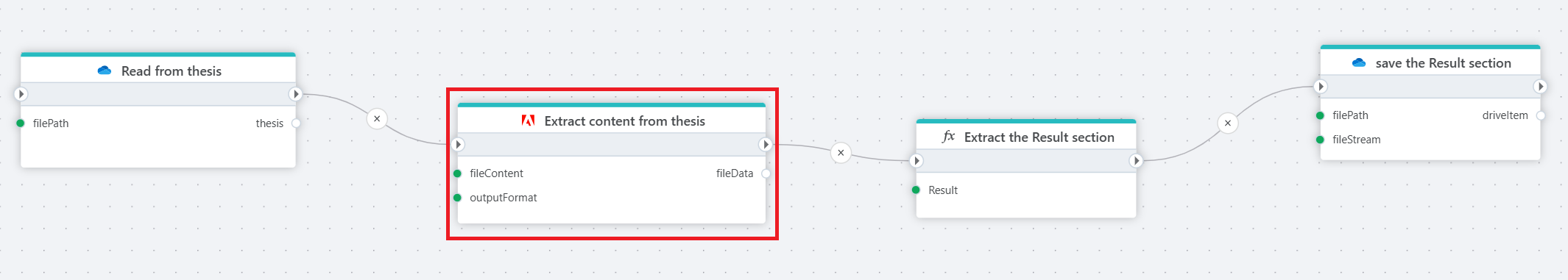

Example img
This flow reads a PDF from cloud storage, extracts its content using Adobe PDF Services with the JSON_Hierarchical format, transforms the output, and stores it in a new file.


Properties

Name Type Description
fileContent Required Byte array of the PDF file to be extracted.
outputFormat Required Defines the structure of the extracted result. Options: JSON_Raw, JSON_Simplified, JSON_Hierarchical.
fileData Optional Name of the variable to store the extracted result. Defaults to fileData.

Output format options

JSON_Raw

  • Contains low-level layout and styling metadata such as bounding boxes, fonts, position coordinates, justification, line height, etc.
  • Best for use cases where exact PDF layout reproduction or fine-grained analysis is needed.

JSON_Simplified

  • Extracts only plain text, organized by page.
  • Suitable for basic text search and lightweight parsing.

JSON_Hierarchical

  • Outputs a tree structure reflecting logical document structure (Document -> Page -> heading, paragraph, table, etc.).
  • Best choice for semantically meaningful documents like theses, reports, contracts.

Examples

JSON_Raw format

{
  "elements": [
    {
      "Bounds": [126.02, 315.34, 488.76, 358.76],
      "Font": {
        "family_name": "Times New Roman",
        "weight": 700
      },
      "Lang": "en",
      "page": 6,
      "path": "/Document/P[6]",
      "text": "Results: Results showed decrease in the intensity of the symptoms of Attention-Deficit/Hyperactivity Disorder...",
      "TextAlign": "Justify"
    }
  ]
}

JSON_Simplified format

{
  "elements": [
    {
      "page": 6,
      "path": "/Document/P[6]",
      "text": "Results: Results showed decrease in the intensity of the symptoms of Attention-Deficit/Hyperactivity Disorder..."
    }
  ]
}

JSON_Hierarchical format

{
  "elementType": "Document",
  "children": [
    {
      "elementType": "Page",
      "page": 1,
      "children": [
        {
          "elementType": "Sect",
          "page": 1,
          "children": [
            {
              "elementType": "H1",
              "value": "Competitive Analysis",
              "page": 1,
              "children": []
            },
            {
              "elementType": "P",
              "value": "Our company’s market share in the travel industry has been steadily increasing since the introduction of our company in 2011, and currently hovers around approximately 15% of US sales, 10% of European sales, and 7% of Asian sales. We do believe, however, that increased marketing efforts are needed to maintain this growth, due to ever-increasing competition from other travel brands.",
              "page": 1,
              "children": []
            },
            {
              "elementType": "Figure",
              "value": "15% 85% Market Share: US Our Company Combined Competitors 10% 90% Market Share: Europe Our Company Combined Competitors",
              "page": 1,
              "children": []
            },
            {
              "elementType": "Sect",
              "page": 1,
              "children": [
                {
                  "elementType": "H2",
                  "value": "Market Share: Asia",
                  "page": 1,
                  "children": []
                },
                {
                  "elementType": "Figure",
                  "value": "7% 93% Our Company Combined Competitors",
                  "page": 1,
                  "children": []
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}
