Insert or update row
Performs an insert or update on a table based on column-value mappings and returns the name of the action performed.
Example
The Flow above illustrates how to use the Insert or Update row action to save customer information to a SQL Server database fetched from a web API. Actions used in this Flow are: HTTP Request, Insert or update row, and Send email.
Properties
| Name | Type | Description |
|---|---|---|
| Title | Optional | A descriptive title for the action. |
| Connection | Required | The SQL Server connection. |
| Dynamic connection | Optional | Use this option of you needs to use a connection from the Create Connection action. |
| Table name | Required | The name of the table to insert or update a row. |

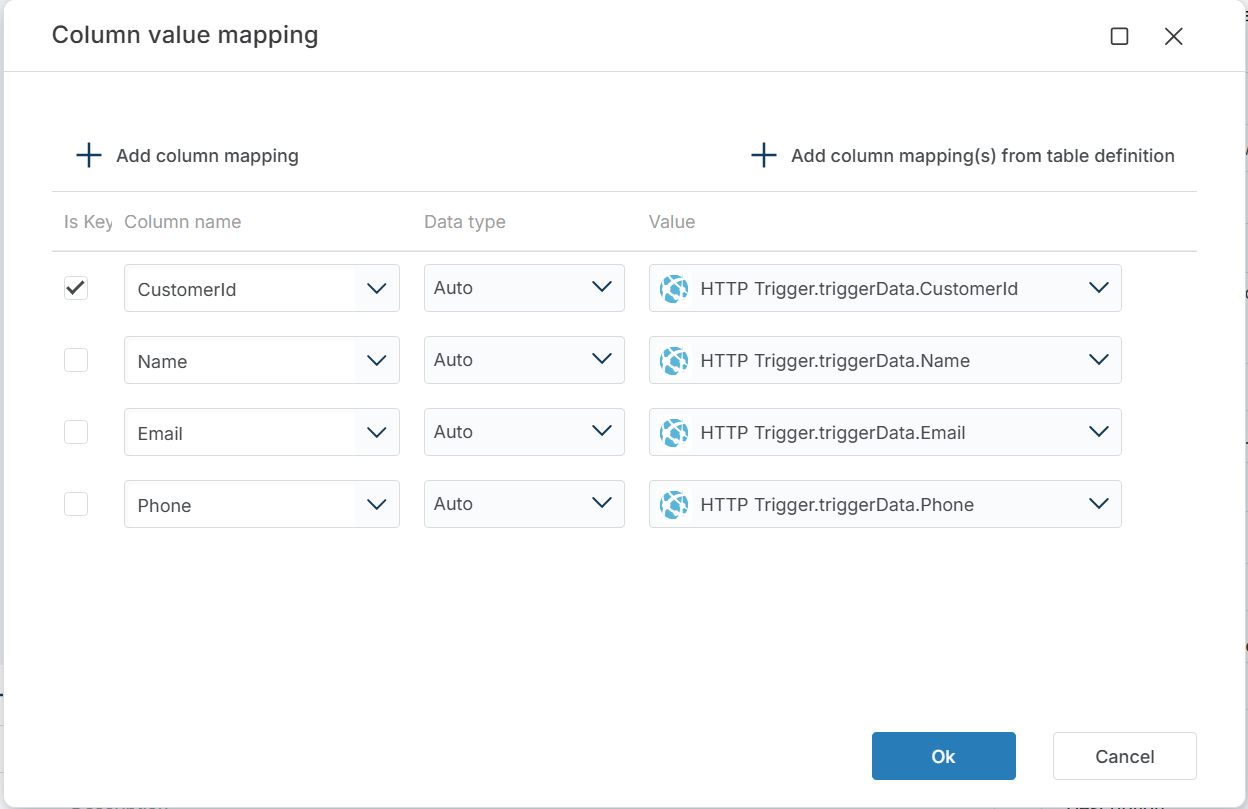

| Column value mapping | Required | Defines the row to update by specifying the columns and corresponding values. |
| Result variable name | Optional | Name of the variable containing the action performed. This always returns either INSERT or UPDATE. |
| Command timeout (sec) | Optional | The time limit for command execution before it times out. Default is 120 seconds. |
| Description | Optional | Additional notes or comments about the action. |
