Update entity

Updates a table in SQL Server using data from an entity.

At least one Update key is required. If you don't specify an Update key, the action will fail.

Logically, this action performs the following:

UPDATE tableName
SET tableName.X = entity.X, tableName.Y = entity.Y
WHERE tableName.Key1 = entity.Key1 AND tableName.Key2 = entity.Key1

All properties in the Update keys configuration will be used in the WHERE clause to identify which row to update.
All properties NOT in the Update keys configuration will be used in the SET clause to identity which columns to update with data from the entity.

Note

Each property name in the entity must exist in the target table. If the database collation is case sensitive, the properties and columns must match by case in addition to name.

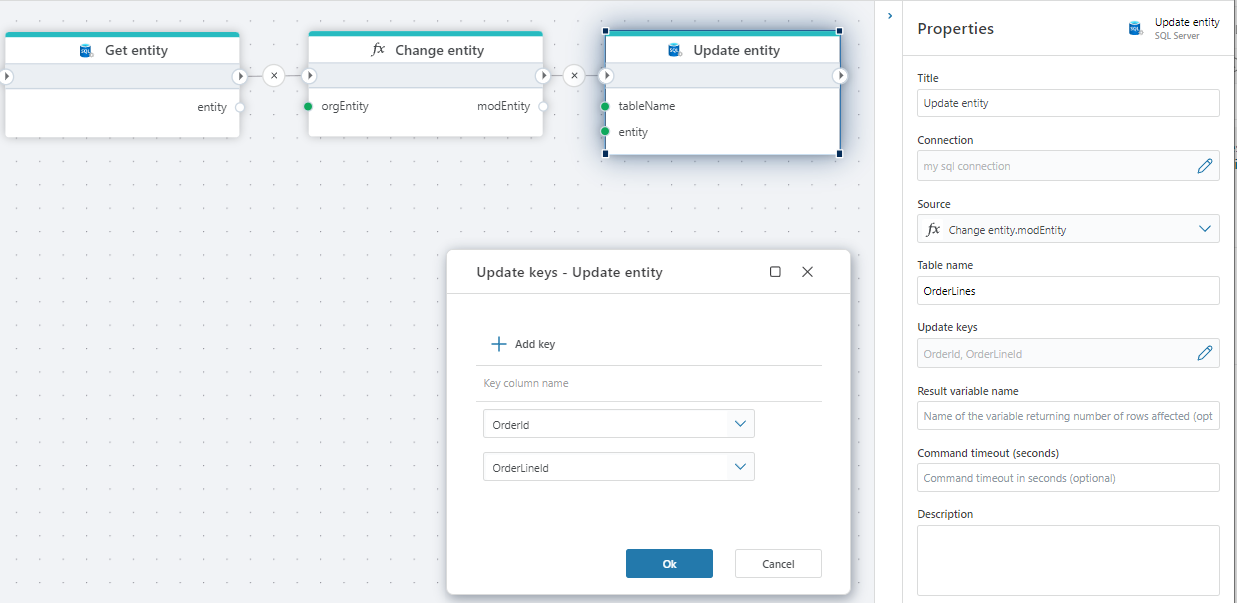

Properties

Name	Type	Description
Title	Optional	A descriptive title for the action.
Connection	Required	The SQL Server Connection.
Dynamic connection	Optional	Use this option of you needs to use a connection from the Create Connection action.
Source	Required	Select the entity to use in update.
Table name	Required	Select or enter the table name to insert into.
Update key	Required	Select the table columns to use for update keys.
Result variable name	Optional	Name of resulting list of entities variable
Command timeout (sec)	Optional	The time limit for command execution before it times out. Default is 120 seconds.
Description	Optional	Additional notes or comments about the action or configuration.
