Send message in channel

Sends a message in a Microsoft Teams channel.

Use this action to send a message to a Microsoft Teams channel. The action supports both Text and HTML message formats, and you can also include attachments.

Properties

Name	Type	Description
Connection	Required	The connection to the Teams account. Setting up a connection requires a Microsoft Work or School account.
Team (ID)	Required	The ID of the team that the channel belongs to.
Channel (ID)	Required	The ID of the channel to send the message to.
Message	Required	The message to send. This can be a plain text message, or a HTML message. If it is a HTML message, remember to set the `Message content type` property to `HTML`.
Message content type	Optional	Specifies whether the message content is Text or HTML.
Attachments	Optional	The attachments to include in the message. Note that in Teams, an "attachment" is a reference to an existing document in OneDrive / SharePoint, so you cannot include a file as an attachment directly. Instead, if you want to include a file (from a stream or byte array), you must used `Hosted content` instead.

Returns

This action returns a chat message.

Attachments

In Teams, an attachment is a reference to a document, not the embedded document itself. This differs from email, where files are included in email messages directly.
To send a Teams message with attachment(s), the document(s) must already exist in OneDrive / SharePoint. To include a OneDrive / SharePoint document as an attachment, do the following:

In the Attachments property of the action, add attachements by defining their Id, Name, Content type and Content Url.
In the message, a reference to the attachment must be included on the form <attachment id="GUID"></attachment>. The Id in the attachments tag in the message must match the Id of the attachment in the Attachements dialog. (See example below)

Name	Type	Description
Id	Required	The Id of the attachment. This must be a valid GUID.
Name	Required	The name of the attachment, for example the file name.
Content type	Required	The content type specifying the attachment type. This defaults to `reference`.
Content URL	Required	The location of the document in OneDrive / SharePoint. Use one of the OneDrive actions to retrieve the document from OneDrive and use the `WebUrl` or `WebDavUrl` property of the OneDriveItem as the Content URL.

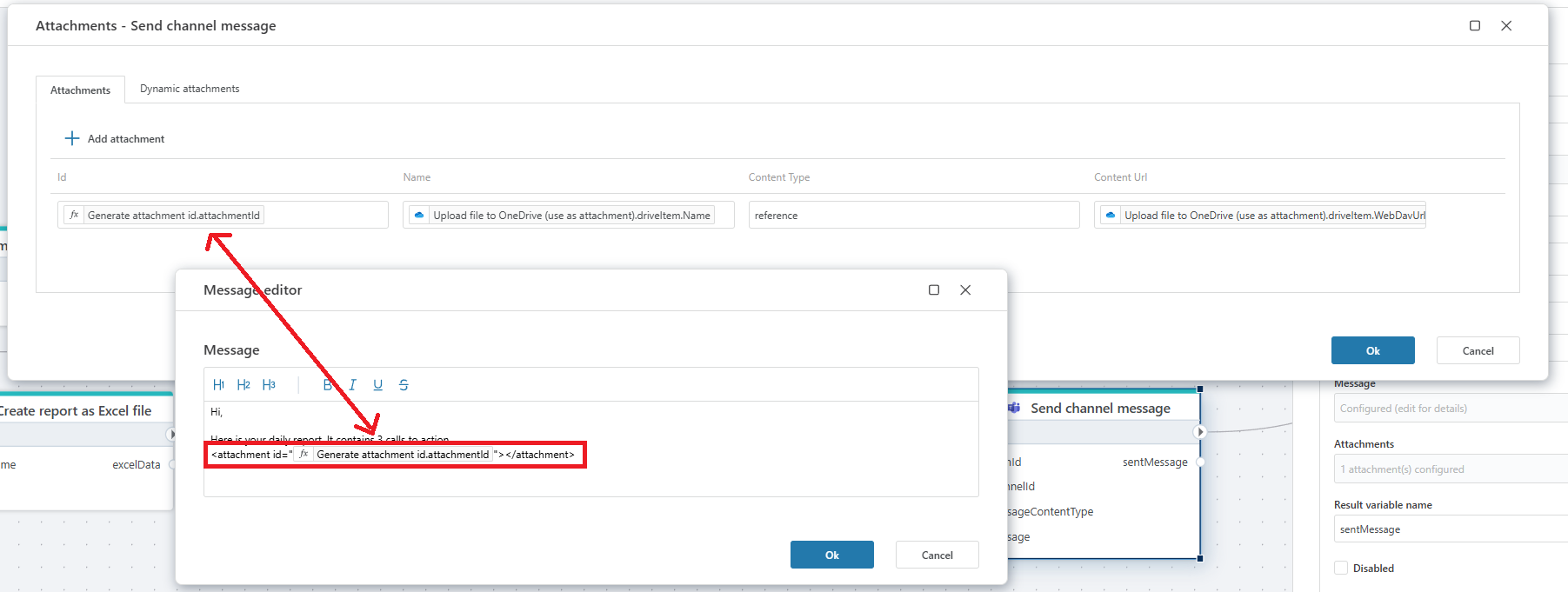

Figure: Attachments must be referenced by id in the message using the <attachment> element .

Example - Send a message with an attachment

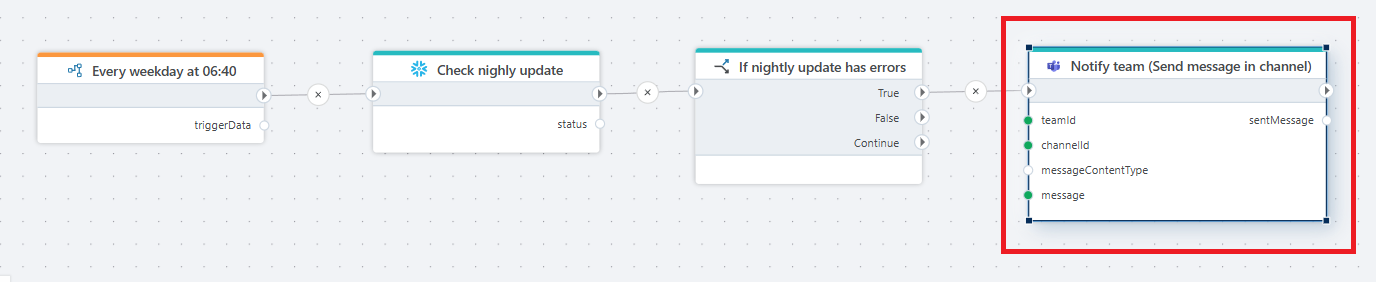

As described above, in Teams an attachment is a reference to a document, not the document content itself. To send a Teams message with an attachment, the document must already exist in OneDrive or SharePoint. This example shows the required steps to send a Teams message with an attachment, as illustrated in the image below.

Our goal is to generate an Excel file with a list of TODOs, and post it to a channel together with a message. To post the file as an attachment with the message, the file must exist in OneDrive or SharePoint (this is simply how MS Teams attachments work). The first thing we do is therefore to generate and upload the file. We use the Upload file to OneDrive action to upload it, which returns the information about the OneDrive item needed to create the Teams attachment.

The Generate attachment ID is a Function that simply returns a GUID as a string. We'll use the attachment ID in both the message body and the list of attachments.

To define the attachment, open the Attachments property of the action and apply the following mappings:

Attachment property	Map from
Id	The GUID generated by the Function action.
Name	The OneDrive item `Name` property.
Content type	The string "reference" (without quotes).
Content URL	The OneDrive item `WebDavUrl` (Or WebUrl) property.

Then, in the Message, you must reference the attachment using the <attachment> tag. This is required by Microsoft Teams for including attachments in messages.

Your message...
<attachment id="the-guid"></attachment>
