UseFlow function

The UseFlow function is used by Workbook component actions such as the Worksheet Load Data or Send Data actions to specify which Flow should handle the request, for example which Flow to use for fetching data to a Worksheet or SQL Report.

The specified Flow must have the Send Tabular Data trigger defined as the startup action.

Example

UseFlow("Update forecast", {
    environment: 'Production', // or 'Development' or 'Test'. Leave blank to use default
    data: {
        departmentId: "sales-NO",
        version: "Jan-26-01"
    }
});

UseFlow(string, object?)

The UseFlow function requires the name of the Flow to be specified. You can optionally specify an options object for passing arguments.

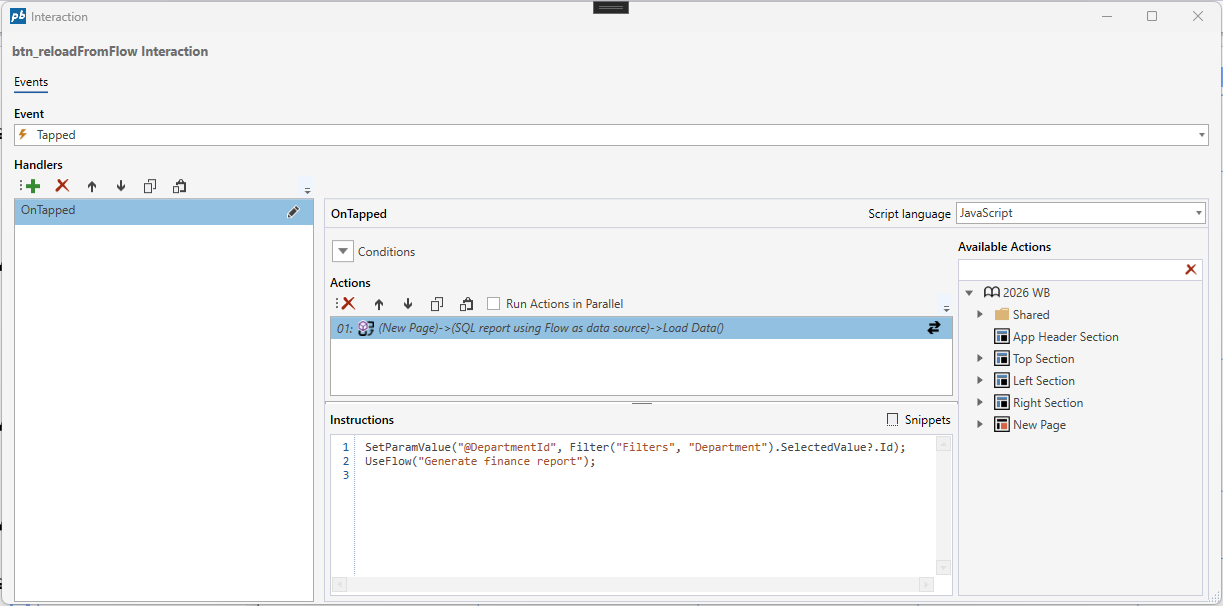

The UseFlow function can only be called in the Instructions script of action handlers such as Send Data or Load Data of Worksheets, Tables, SQL Reports and Table Views.

API Definition

UseFlow(flowName: string, {
    solutionId?: string,
    environment?: string,
    data: {}
})

Property	Description
flowName	The name of the Flow in the Solution to execute.
solutionId	Optional. Specify this property if you want to run a named Flow that belongs to a differnet Solution than the open Workbook.
environment	Optional. Specify this option of you want to override the FLOW_ENVIRONMENT Solution Variable.
data	Optional. Specifies the arguments to send to the Flow.

Returns

If the specified Flow returns a DataPackage, the Worksheet, SQL Report, Table or TableView for which the action is called will update its data accordingly.

Example

UseFlow("Update forecast", {
    environment: 'Production', // or 'Development' or 'Test'. Leave blank to use default
    data: {
        departmentId: "sales-NO",
        version: "Jan-26-01"
    }
});

// You can also pass parameters to Flow using SetParamValue
SetParamValue("@DataSetId", _state.DataSetId);
